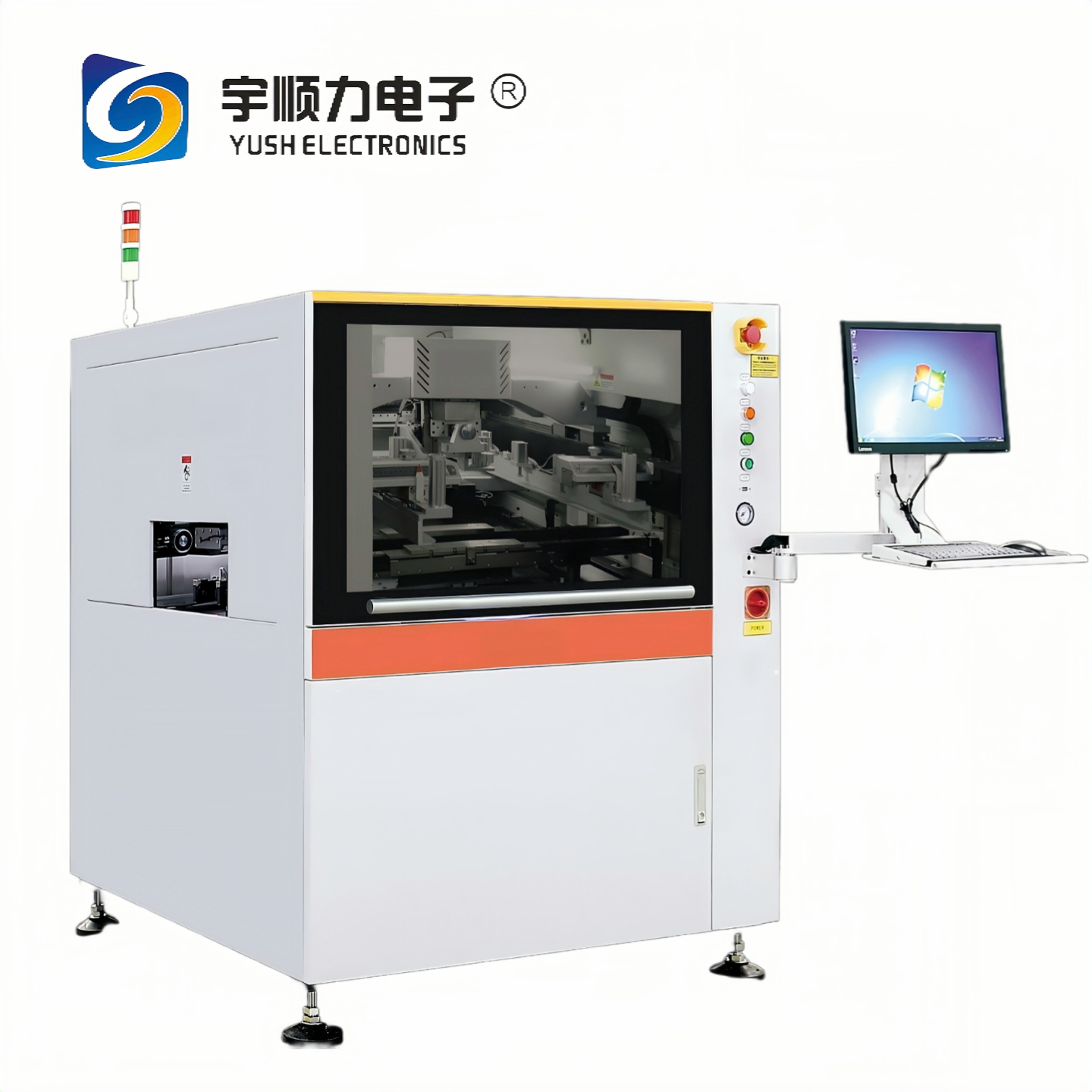

Fully Automatic High Efficiency Visual Printer For SMT Line

Name: Fully Automatic High Efficiency Visual Printer For SMT Line
Brand: YUSH
Price: 25000 USD

Brand Name : YUSH

Model Number : YSL-9

Place of Origin : Guangdong

MOQ : 1

Price : USD25000

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000

Delivery Time : 20work days

model : YSL-9

weight : 1100kg

Machine size : 1220x1560x1500

changeover time : 5min

Contact Now

YSL-9 automatic vision printing machine is mainly used in mini LED, semiconductor printing, smart phone fields, Smart wear,can perfectly meet the fine pitch of 03015, 0.15Pich, and high precision requirements.

Technical Parameters

Screen Frames

Min Size	420x370MM
Max Size	737X737MM
Thickness	20-40MM
Stencil Position Mode	Automatic Y-axis positioning

PCB Board Parameters

PCB Min Size	50x50mm
PCB Max Size	510x340mm
PCB Thickness	0.4-6mm
PCB Warpage	<1%
Image Capture Mechanical Range	530x340mm

PCB Board Edge Clearance	2.5mm
Board Height	25mm
Transport Height	900±40mm
Transport Speed	Max 1500mm/SProgrammable
Transport Mode	One section transportation track

Maximum PCB Board Weight	5kg
Transport Direction	Left-Right; Right-Left; Left-Left; Right-Right

Printing Parameters

Printing Speed	10-200mm/sec
Printing Pressure	0.5-25kg
Printing Mode	Single or double squeegee printing
Release Distance	0-20mm
Snap-Mode	Three stage demolding

Squeegee Angle	60°/55°/45°
Squeegee Type	Rubber squeegee/Steel squeegee (Angle 45°/55°/60°)
Release Speed	0-20mm/sec

Printing Accuracy

Repeat Position Accuracy	±0.009mm@6o,CPK≥2.0
Printing Accuracy	±0.017mm@6 o,CPK≥2.0
Cycle Time(Excluding Cleaning)	<7s (Exclude Printing&Cleaning )
Cycle Time(Including Cleaning)	13s
Changeover Time	5Min

Cleaning Parameters

Cleaning Stroke	Automatic generation
Cleaning Position	Post cleaning(BTBpre cleaning)
Cleaning Speed	10~200mm/sec
Cleaning Fluid Consumption	Auto&Manually adjustable
Cleaning Paper Consumption	Auto&Manually adjustable

Image Parameters

CCD FOV	10*8mm
Camera Type	130 megapixel digital camera
Camera System	Lock up/down iption structure

Camera Cycle Time	150ms
Mark size	0.1~6mm
Stay Away Number	Max:1pcs
Mark Number	Max:4pcs
2D Detection	Detect low tin/missing print/continuous tin

Functional Configuration

Safely Control	Door open to stop, abnormal alarm
Smart UI	Brand new interface, shortcut key operation
Permission Setting	It can be freely set, and the authority division of operators,technicians and engineers can be set

BTB	Electrical cleaning layout is advanced, equipment is integrated, saving space and improving efficiency
Standard MES System	Customized output of Industry 4.0 solutions,can record SOP and equipment open data, and upload
SPI Connection	Automatic compensation for offset and detection of less tin,Automatic cleaning of steel mesh
Traceability System	Camera scan code, size compatible: 2.52.5-8.8mm
In Series	Two machines are printed in tandem to increase productivity

Appearance dimensions diagram

Installation equipment on-site matching

Machine Weight	1100kg
Main Power Supply	AC:220±10v;50/60Hz,3KW,with stable current and power supply
Ground Wire	The equipment needs to be grounded separately by pulling a grounding wire
Plug Type	English SS145(13A)
Main Air Supply Source	4.0-6qf/cm?industrial gas source, with a straight airway diameter of 8mm

Equipment operating environment

Working Temperature	-20℃-45℃
Working Environment Humidity	30%~60%
Electrostatic Protection	ESD grounding electrostatic protection
